CH-TH-003 and CH-TH-005

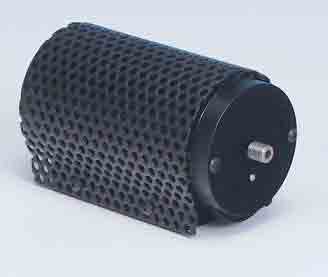

High Stability Visible Lamp Assembly

• Provides optimal illumination to

fiber optics for remote

applications.• Offers excellent color temperature

stability.

• Use with CROWNTECH’s SM Series

spectrometers.

• Contains internal current

regulation.

Optimum Illumination for CROWNTECH’s

SM Series Spectrometers

This lamp is a near Black Body source of light in the visible to near IR spectral

region. It has been designed to produce the maximum illumination from a Black

Body source into a fiber bundle. This light source is primarily for use with the

CROWNTECH Series spectrometers.

The lamp assembly comes in a 3 watt or a 5 watt tungsten/halogen lamp confi-

guration, an aluminum housing, and a wall transformer as a power supply. The power

input is regulated inside the lamp housing to assure a ± 0.4% stability over the current

range. Current regulation ensures color temperature stability.

The tungsten/halogen lamp used inside the lamp has a nominal color

temperature of 2800ºK and an average life of 10,000 hours at this color

temperature.

Specifications:

Lamp: Tungsten-halogen

Power: Wall transformer, 115 VAC,

50/60 Hz to 12 VDC at 0.8 amps

220 VAC version available

Current Regulation: ± 0.4%

Mean Spherical Candlepower: 3.3

Color Temperature: 2800° K

Bulb Life: 10,000 hrs. average

Housing: Aluminum, convection cooled,

1/4”-20T in base for post mounting.

Connector: SMA Fiber connector Type 905

Size:

Long 3.8 inches (9.8cm)

High 2.3 inches (5.9cm)

Wide 2.1 inches (5.7cm)

Weight: 11 ozs. (0.3 kgs.)

Options: Specify SM, FC, ST, CL, or

CS for specific fiber couplers.

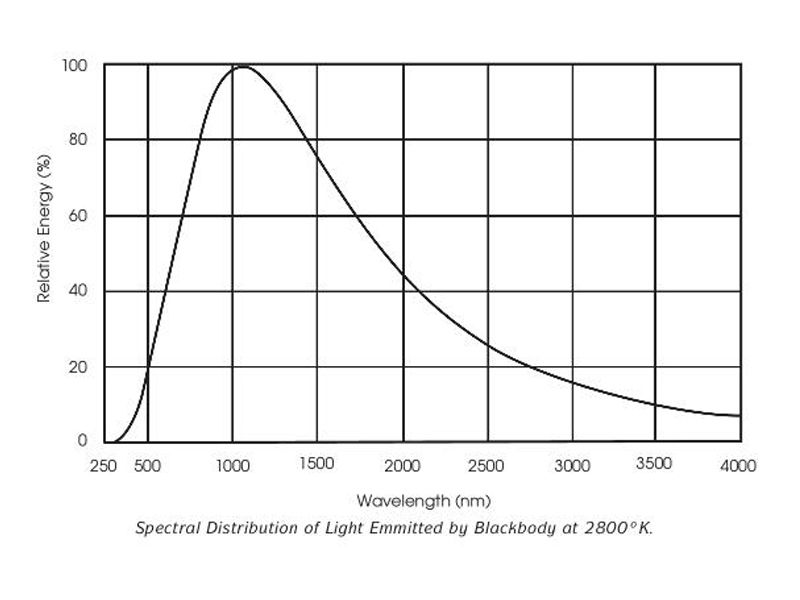

Wavelength (nm)

Spectral Distribution of Light Emmitted by Blackbody at 2800ºK.

Ordering Information: Please indicate product

number plus description when ordering.

CH-TH-003 3 watt Tungsten-halogen

Visible Light Assembly

CH-TH-005 5 watt Tungsten-halogen

Visible Light Assembly
